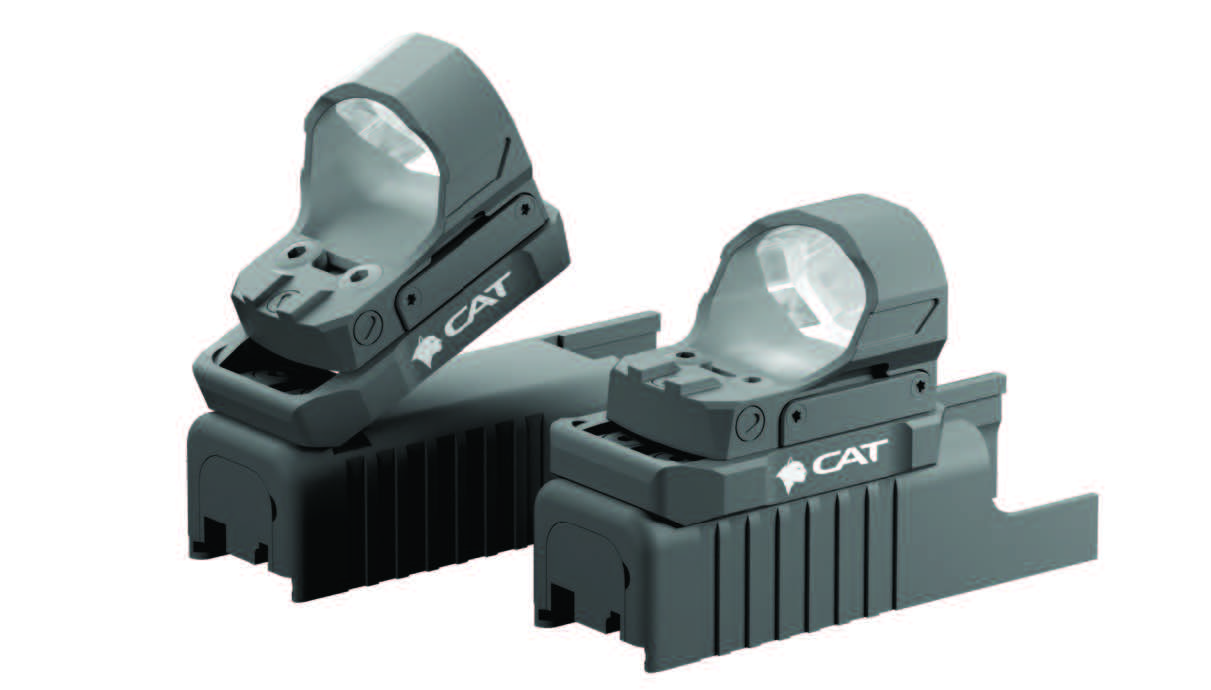

CAT GEN2 EVO “Sport” Mount

Quick mechanical-magnetic mounting system;manufactured from aerospace-gradealuminum and tempered steel,designed to attach di􀆳erenttypes of red dot sights tovarious firearm models.

Specifications:

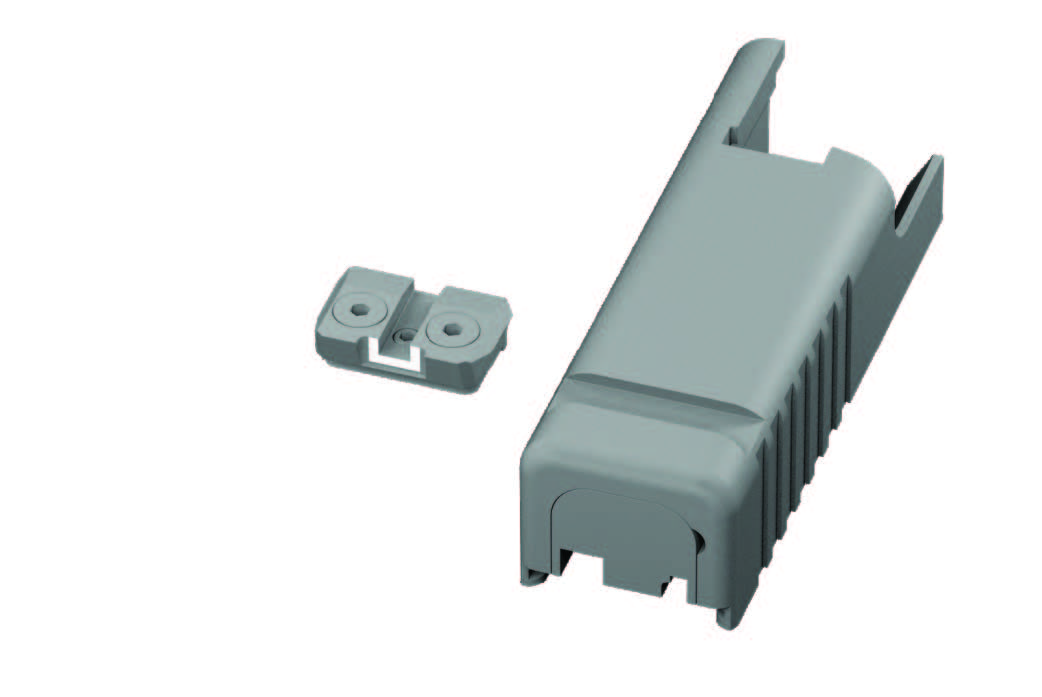

  • Rear Sight: Designed for each pistol according toits original height. Composed of two parts:the main body of the sight and a dovetail.Joined together with screws.
  • Mount: Mechanical-magnetic with a high-powerneodymium magnet.
  • Fixing Screws: UNC 6-32 thread.

Assembly Dimensions (RMS):

  • Width: 30 mm.
  • Lenght: 51 mm.
  • Total Height: 9 mm.
  • Sight elevation above slide: 5.3 mm.
  • Includes: Fixing tools.

Installation Steps:

1- First, remove the original rear sight and replace itwith the one provided in the set (it is recommended to applythread adhesive to the screws).

2- In parallel, the sight can be installed onthe magnetic mount. Caution must be takenwith the magnet as it is very powerful.

3 - To attach the assembly, insert the rear sightinto the mount and rotate it downwarduntil the mount adheres to the pistol slide.Installation Steps:GLUE

4- To remove the assembly, grab itand rotate it upward, opposite tothe installation process.
